Crazy Topper Build with Built-in 55" TV

Trihonda

Straight Flush
Moderator
Supporting Member
Joined
Aug 23, 2013
Messages
7,846
Reaction score
8,136
Location
Wisconsin
I have two similar-design exhaust/cooling fans installed in a cabinet that houses a cable box, wireless router, telephone converter, and UPS. The fans plug into USB ports, don't make much noise at all, and keep the four electronics devices plenty cool. I think 110v units would be huge overkill for your set-up, especially if you already have the table wired for USB.
I don’t currently have the table wired for USB. But it will be (is) wired for 110v... I ordered the 110 fan I linked since it appeared rated for half the dba as it’s nearest competitor. We will see. If the noise levels are intrusive it’s good to hear you’ve had success with the usb fans.


Forty4

Full House
Joined
Dec 29, 2014
Messages
2,954
Reaction score
2,420
Location
Rochester, NY
I don’t currently have the table wired for USB. But it will be (is) wired for 110v... I ordered the 110 fan I linked since it appeared rated for half the dba as it’s nearest competitor. We will see. If the noise levels are intrusive it’s good to hear you’ve had success with the usb fans.
TV will probably have a USB port


atomiktoaster

Full House
Joined
Jun 19, 2014
Messages
2,812
Reaction score
1,345
Location
TX
Looks fun! I'd second a tempered glass top. Should be able to find a glass and mirror shop to custom cut something. The stiffness and scratch resistance will be worlds better. You see glass top coffee tables and shelves all the time for similar reasons.


Trihonda

Straight Flush
Moderator
Supporting Member
Joined
Aug 23, 2013
Messages
7,846
Reaction score
8,136
Location
Wisconsin
Looks fun! I'd second a tempered glass top. Should be able to find a glass and mirror shop to custom cut something. The stiffness and scratch resistance will be worlds better. You see glass top coffee tables and shelves all the time for similar reasons.
I was hesitant about the tempered glass initially, as I figured it would be cost prohibitive. I had priced the plexi and it was going to come in at around $100 for a cut section. Calling several different quotes for custom cut one quarter inch thick tempered glass will run me around $95. Looks like we have a winner folks. Thank you for the suggestions, as I feel like this will actually provide better protection, and scratch resistance.

I will still pick up a piece of thin or plexi (or even plywood) as an underlayment to protect the poker felt. This should be much more reasonable


allforcharity

4 of a Kind
Site Vendor
Supporting Member
Joined
Dec 29, 2017
Messages
6,879
Reaction score
6,568
Location
Burnaby (Greater Vancouver), BC
I, personally, would still go for the acrylic over the tempered glass. Way lighter and easier to move, won't accidentally shatter, still very strong. I doubt you'll be scratching it so bad that you'll notice, considering you're putting simple gaming supplies and books on it.


Trihonda

Straight Flush
Moderator
Supporting Member
Joined
Aug 23, 2013
Messages
7,846
Reaction score
8,136
Location
Wisconsin
I, personally, would still go for the acrylic over the tempered glass. Way lighter and easier to move, won't accidentally shatter, still very strong. I doubt you'll be scratching it so bad that you'll notice, considering you're putting simple gaming supplies and books on it.
ok, you’re killing me... I was all set to go glass, and now you pull this...? Now I can’t decide.


WedgeRock

Straight Flush
Supporting Member
Joined
Feb 25, 2016
Messages
9,332
Reaction score
13,220
Location
America's High-Five
Since we are at a moment of indecision, what about building a dedicated table? If there is unknown about damaging the felt and custom cloth, why not build a box to hold the TV. It can be simple but custom, so no retro fitting... I would hate to see the poker table damaged.


Trihonda

Straight Flush
Moderator
Supporting Member
Joined
Aug 23, 2013
Messages
7,846
Reaction score
8,136
Location
Wisconsin
Since we are at a moment of indecision, what about building a dedicated table? If there is unknown about damaging the felt and custom cloth, why not build a box to hold the TV. It can be simple but custom, so no retro fitting... I would hate to see the poker table damaged.
i was very tempted to simply build a topper for the poker table, and then a portable box/enclosure for the TV... and sit that atop the topper. But I was leaning towards flush mounting it. As the enclosure would be elevated a few inches. But the enclosure certainly opens up other options and solves some other concerns.


atomiktoaster

Full House
Joined
Jun 19, 2014
Messages
2,812
Reaction score
1,345
Location
TX
26 lbs of glass vs 12 lbs for the acrylic. You won't notice the weight moving it with 2 people, I expect, if it's permanently installed in the topper.


Trihonda

Straight Flush
Moderator
Supporting Member
Joined
Aug 23, 2013
Messages
7,846
Reaction score
8,136
Location
Wisconsin
26 lbs of glass vs 12 lbs for the acrylic. You won't notice the weight moving it with 2 people, I expect, if it's permanently installed in the topper.
whatever I use, acrylic vs glass, I was planning to use a thin bead of silicone around the edge to help hold it in place. I will store the topper ON the table and remove it for poker nights. I’ll just stash the topper in the adjacent spare bedroom (leaned up against a wall). I don’t want the glass coming out


atomiktoaster

Full House
Joined
Jun 19, 2014
Messages
2,812
Reaction score
1,345
Location
TX
whatever I use, acrylic vs glass, I was planning to use a thin bead of silicone around the edge to help hold it in place. I will store the topper ON the table and remove it for poker nights. I’ll just stash the topper in the adjacent spare bedroom (leaned up against a wall). I don’t want the glass coming out
Some actual glass and mirror adhesive might be more secure. Silicone isn't the strongest stuff.

Then add the weight of the monitor, plus the frame, etc.
Sure, but it's apples to apples. Since the whole thing isn't going to be light, an extra 14 lbs shouldn't make a big difference. You're team lifting this bad boy no matter what.


Trihonda

Straight Flush
Moderator
Supporting Member
Joined
Aug 23, 2013
Messages
7,846
Reaction score
8,136
Location
Wisconsin
Some actual glass and mirror adhesive might be more secure. Silicone isn't the strongest stuff.



Sure, but it's apples to apples. Since the whole thing isn't going to be light, an extra 14 lbs shouldn't make a big difference. You're team lifting this bad boy no matter what.
Again, the TV only weighs 17lbs. It’s by far the lightest TV I’ve seen in this class, which might actually be about the same weight as the 48”x28” piece of 3/4” ply I’ll be cutting out of the middle. Lol.


RowdyRawhide

Full House
Supporting Member
Joined
Nov 4, 2014
Messages
3,581
Reaction score
3,470
Location
Kansas
Again, the TV only weighs 17lbs. It’s by far the lightest TV I’ve seen in this class, which might actually be about the same weight as the 48”x28” piece of 3/4” ply I’ll be cutting out of the middle. Lol.
I believe 3/4 in plywood weighs about 1 1/2 - 2lbs per sq ft...if that helps with an over all weight estimate (which you must already know with your above estimation.)


Trihonda

Straight Flush
Moderator
Supporting Member
Joined
Aug 23, 2013
Messages
7,846
Reaction score
8,136
Location
Wisconsin
I have two similar-design exhaust/cooling fans installed in a cabinet that houses a cable box, wireless router, telephone converter, and UPS. The fans plug into USB ports, don't make much noise at all, and keep the four electronics devices plenty cool. I think 110v units would be huge overkill for your set-up, especially if you already have the table wired for USB.
TV will probably have a USB port
Well, I went ahead and ordered a couple more fan setups from Amazon. I ordered a single and double fan with USB hookup. Not sure which one I'll use, but the one I don't use can get plugged into my PS4 system to keep it cool.

The more I thought about it, if I used AC, sure I'll have a power strip in there, but I would hate to have to lift the table topper up each time to plug in the fan. If I plug them into the TV, hopefully it won't power the fan until the TV is turned on. I checked the TV specs and it says one USB 2.0 out. I'm assuming that will provide enough power? And I'm assuming it's not powering when the TV is off (I'll have to test it to make sure).

Boy, still keeping the set-on-top TV box as an option for this build... I really think it's a much cooler (baller) setup to have it flush mounted, and allows for books and such to spill over onto the screen (as space will be tight otherwise), but it's certainly creating a lot of logistical issues to make it happen... Fans, Grommets, Concerns about damaging the poker felt... etc....

Here's a video of someone who made a box... it'd be cool, but not as cool as flush mounting...



Trihonda

Straight Flush
Moderator
Supporting Member
Joined
Aug 23, 2013
Messages
7,846
Reaction score
8,136
Location
Wisconsin
table build is IN progress...

snagged a nice piece of birch ply. Started to work on cutting it to fit. Should overhang 1” on all sides. I’d love a skirt, but I don’t think I’ll have enough room, so it’ll just sit on top of the vinyl rail. I’ll add some bumpers on the inside so it doesn’t shift around.

a router is the only way to get nice arc (aside from CNC)


edge banded with birch


used levels to mock where the screen will fit


Trihonda

Straight Flush
Moderator
Supporting Member
Joined
Aug 23, 2013
Messages
7,846
Reaction score
8,136
Location
Wisconsin
Got quite a bit accomplished this evening, with the help of my buddy (Cody).

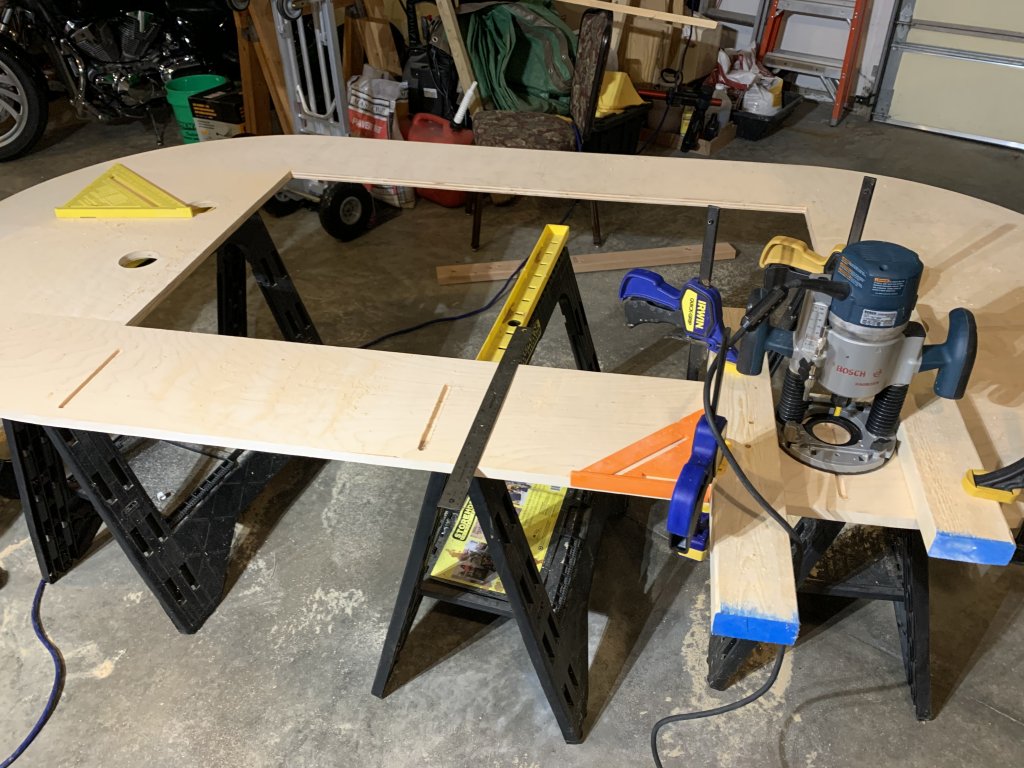

I routed relief grooves that will float over the rail. The idea is this will allow some air intake, and allow for the power cord to wrap around and be routed back towards the power supply in the legs.

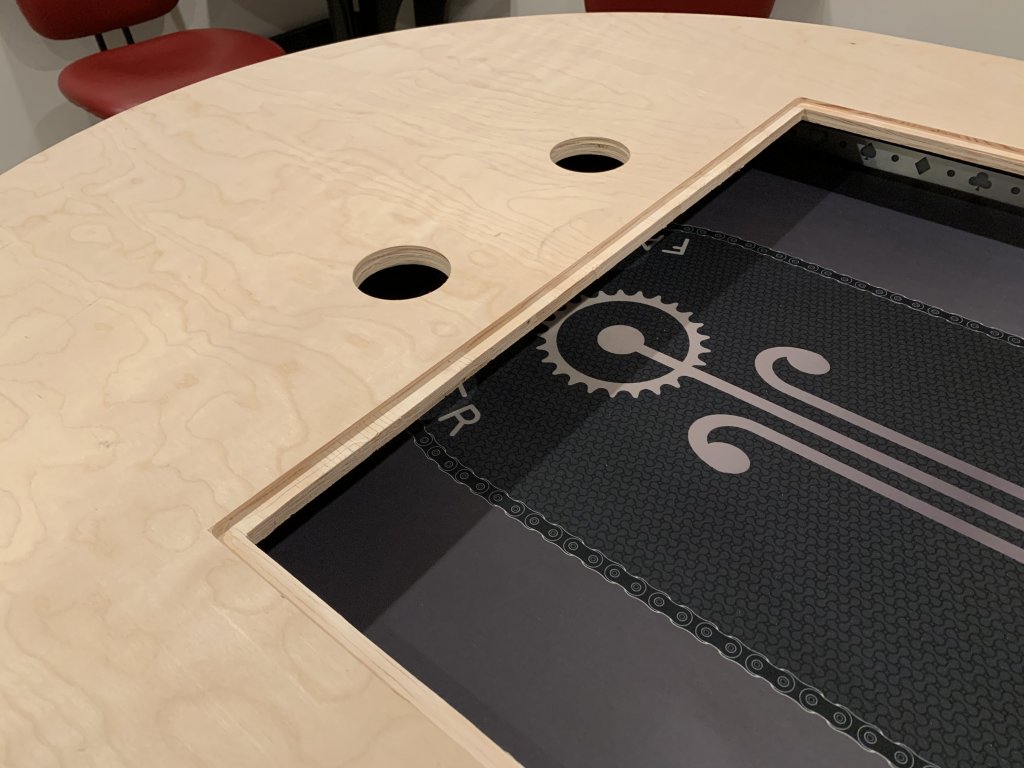

We routed the rabbit grove where the tempered glass will rest.



going with two exhaust fans. These are usb powered and only turn on when the TV is turned on. The other side will allow routing for HDMI and other cabling.




Trihonda

Straight Flush
Moderator
Supporting Member
Joined
Aug 23, 2013
Messages
7,846
Reaction score
8,136
Location
Wisconsin
Any thoughts on stain color? I went to my local “stain” and hardware store and found two color options.. pure black or onyx. They have pure black in super small cans. Need a few. Or I can get onyx in the correct sized can. I want a black colored stain. Which to choose? Anyone have experience with these? @T_Chan what color do you use on the black drink carts? I have a number of these and matching this would be good.


Trihonda

Straight Flush
Moderator
Supporting Member
Joined
Aug 23, 2013
Messages
7,846
Reaction score
8,136
Location
Wisconsin
55" TV - MEH. I'd be impressed if this was a >65". But yeah, looks cool - even with that small screen.
the 55”screen is almost too big. There’s a lot of fitment under the topper surface. With the bracing/framing that is required, there’s not much spare room left. Plus, you want some area around the edge for players to place books, dice, etc.

...but I do like where your head is at.


T_Chan

Full House
Site Vendor
Joined
Apr 25, 2013
Messages
3,107
Reaction score
6,914
Location
Vancouver
Any thoughts on stain color? I went to my local “stain” and hardware store and found two color options.. pure black or onyx. They have pure black in super small cans. Need a few. Or I can get onyx in the correct sized can. I want a black colored stain. Which to choose? Anyone have experience with these? @T_Chan what color do you use on the black drink carts? I have a number of these and matching this would be good.
Classic black polyshades by Minwax. It's a 2 in 1 stain and finish. I don't use the product anymore though as I now prefer to apply a lacquer after the fact so that there's no chance of color rubbing off.


Trihonda

Straight Flush
Moderator
Supporting Member
Joined
Aug 23, 2013
Messages
7,846
Reaction score
8,136
Location
Wisconsin
Classic black polyshades by Minwax. It's a 2 in 1 stain and finish. I don't use the product anymore though as I now prefer to apply a lacquer after the fact so that there's no chance of color rubbing off.
Thank you sir

I was planning to do a couple coats of urethane over the black stain.


bsdunbar1

Full House
Tourney Director
Joined
Jun 1, 2015
Messages
2,787
Reaction score
5,529
Location
Omaha, NE
My son and I refinished a kitchen table for him that was painted black. We wanted to stain it black and none of the Minwax stains came close to "BLACK" other than True Black 274


Trihonda

Straight Flush
Moderator
Supporting Member
Joined
Aug 23, 2013
Messages
7,846
Reaction score
8,136
Location
Wisconsin
My son and I refinished a kitchen table for him that was painted black. We wanted to stain it black and none of the Minwax stains came close to "BLACK" other than True Black 274
hmmm, good to know. I was wondering this... I was almost Gonna do onyx, because people have said it’s like black... but in the store display, i liked the true black better.

Edited: I ordered the true black in amazon in the size can I need. Way cheaper than buying a bunch of smaller cans.
