So I have 8 different molds to mill, and they're all a different circumference by the tinyest margin.

The jig I created by following @Eloe2000 's guide is awesome. But I thought it would be nice to be able to move the jig back and forth a mm or so to account for this size difference.

(To be clear, If I were only milling 1 mold, I wouldn't need this milling table add-on for my drill press).

Enter this milling table I found on Amazon for $66 CAD (about $50 US).

While there is a video or two out there showing negative reviews, I read many reviews stating they did not adjust the table and tighten it correctly.

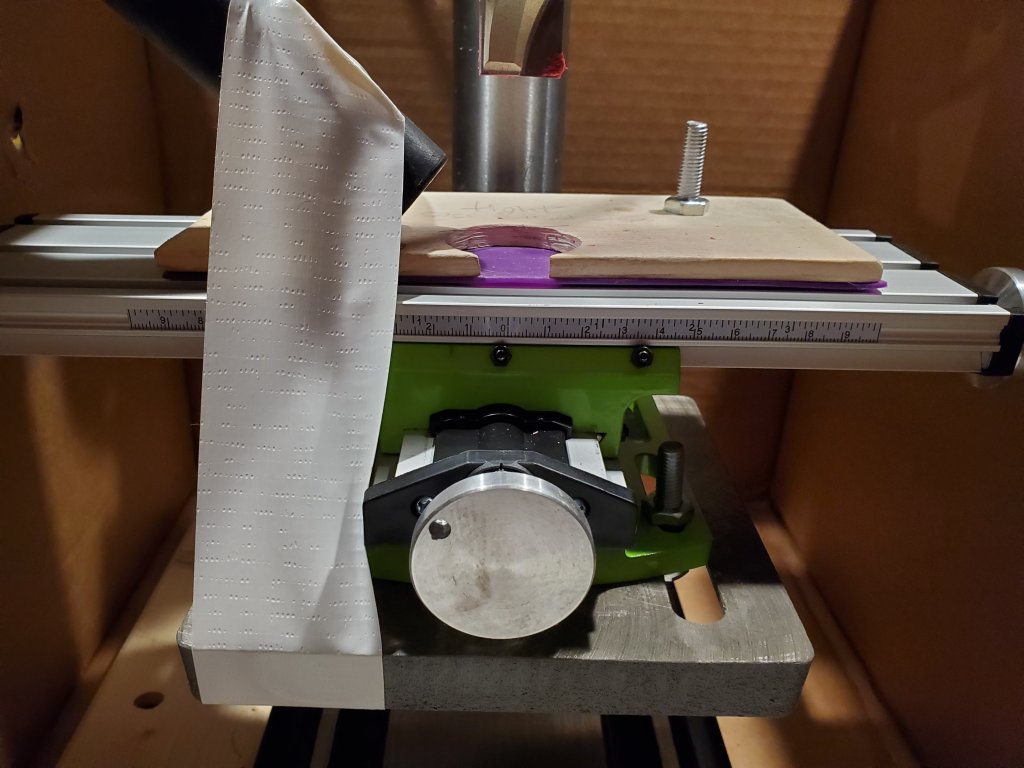

I just milled a barrel of chips and this thing came out the box ready to go. It was solid, table was not wobbly at all. Even though it was fine, I still used the included allen key to tighten the 3 black screws that lock the left-right axis in place. I just placed the rubber mat and jig on top of the table and locked it in place with 2 bolts. And used the other 2 bolts supplied to attach it all to the drill press.

So far I've tried swapping in a few different molds, and can easily adjust in/out with a quick turn of the dial. If my 1st side milled is off by a hair after eyeballing it, I can adjust and easily get it right on center without fear of setting things off too much like I did before.

*I will update after milling a few racks with different molds, and using the adjustments more. To see if they stay as solid as they are now.*



Still using duck tape to hold my shopvac in place. I moved it closer to the chip and it removes 99% of the shavings.

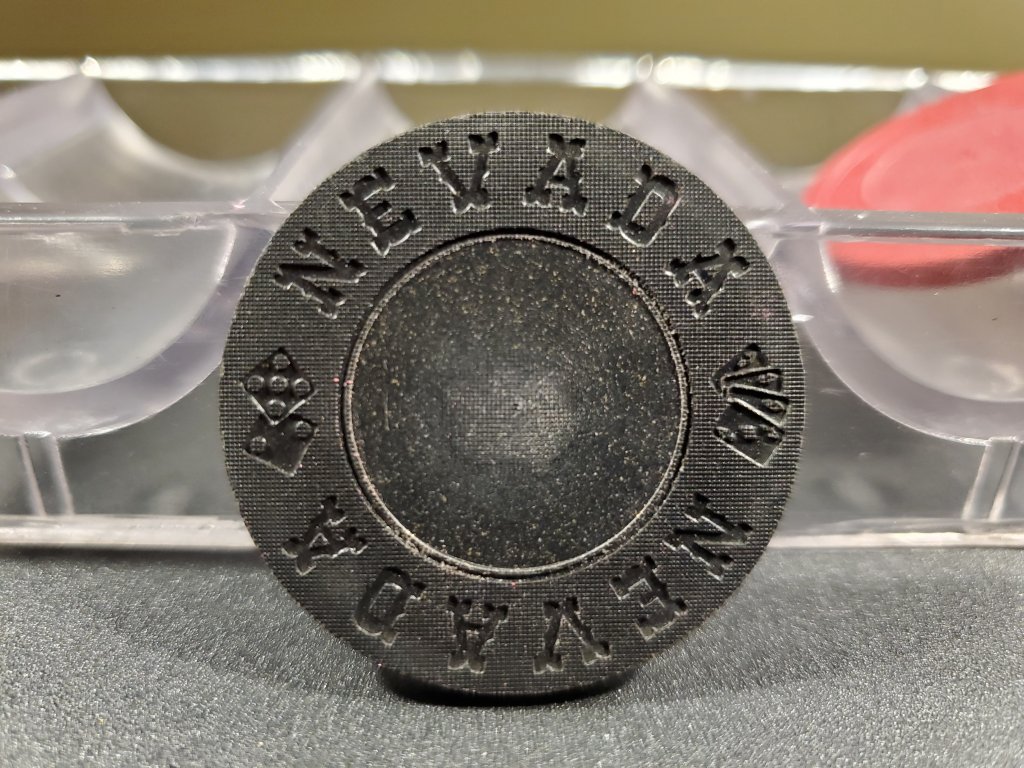

After swapping molds and having it all aligned for something different, I took out some Nevada molds. 1st side after eyeballing it: too high



Side 2 after adjusting the table back a bit with a turn of the dial:

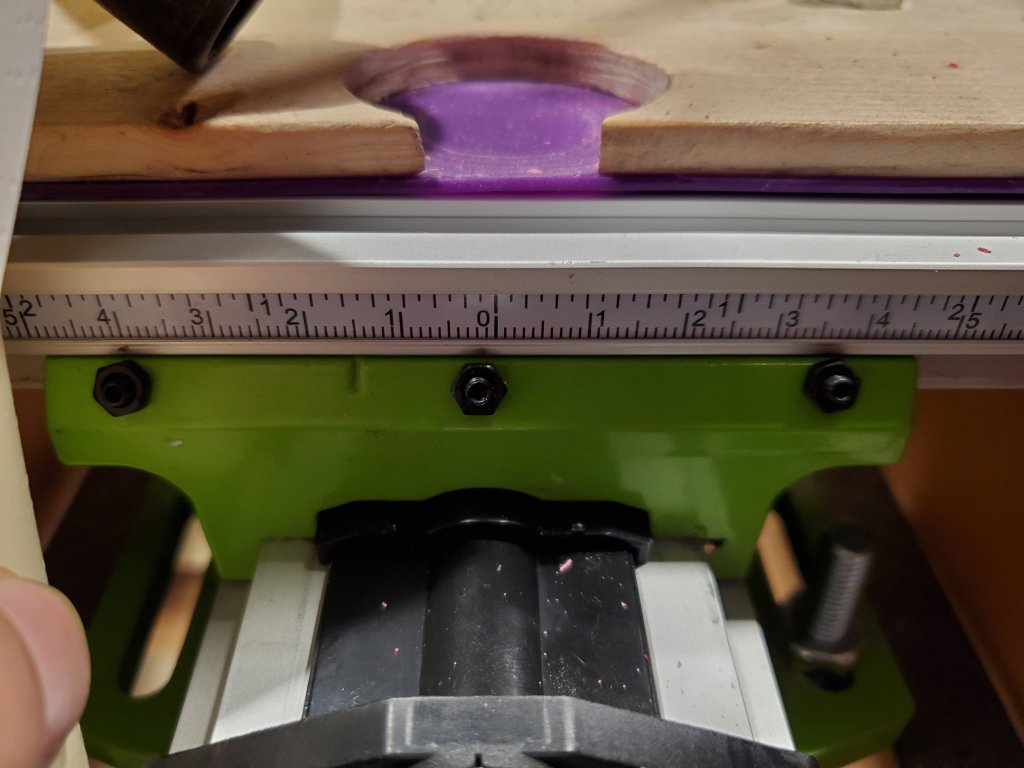

These 3 screws lock the left-right axis from moving. I locked them down.

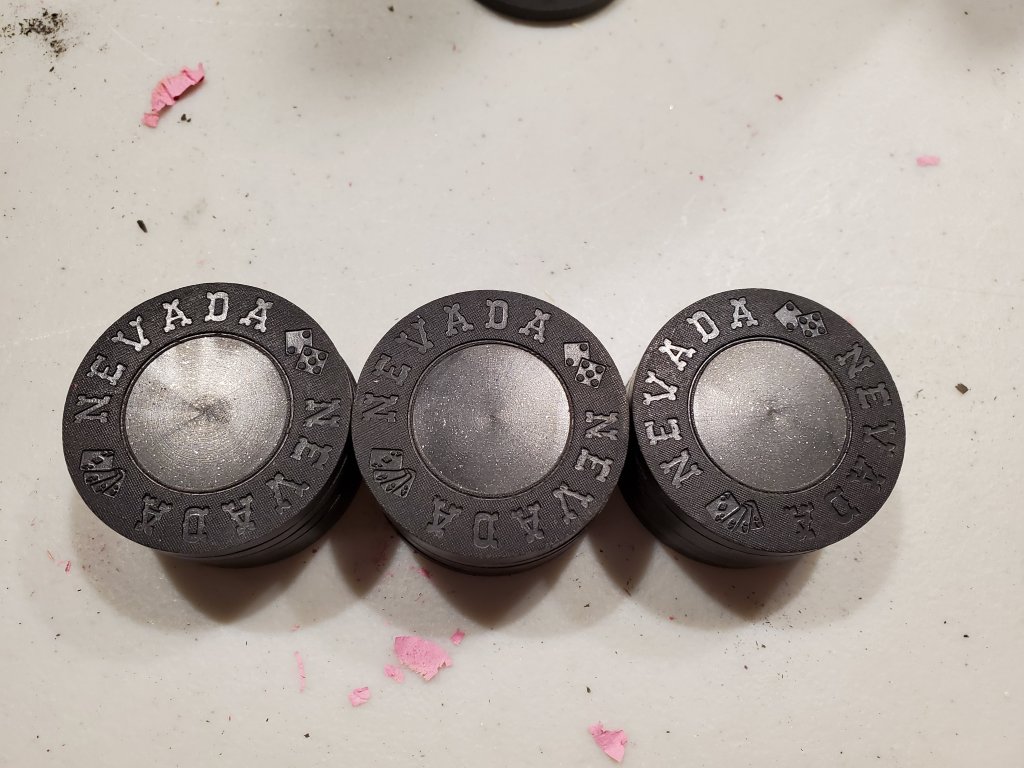

Each stack here is 6 chips. I photographed chip #6, #12 #18 to show there's no movement from one chip to another and no wobbling during milling.


Eloe2000

4 of a Kind
Supporting Member
Joined
Jun 23, 2019
Messages
6,700
Reaction score
16,384
Location
Casa Mango, FL
Fantastic write up. I am probably going to pick one up when I have my next batch to mill. It’s cheap enough to give it a go. Thanks for posting.


Marius L

Full House
Joined
Oct 23, 2015
Messages
3,357
Reaction score
4,395
Location
Norway
Great info! Have you (or anyone else for that matter) tried milling flower molds?


GenghisKhan

Full House
Supporting Member
Joined
Nov 7, 2014
Messages
2,569
Reaction score
3,266
Location
NB Canada - Maine's next door neighbour
Update: after milling about 1200 chips with this milling table, I can confirm it does NOT move whatsoever.

You can lock in both axis once you've aligned the table for your chip size/mold. Then you're good to go.

For me having to mill multiple molds of different sizes, it was well worth the investment.

I'd share pics of the results, but we have renovations that started so I had to clean my poker room / workshop and put everything away.

I did get more chips in though. About 1100 HHR I need to mill.

Not even sure what to do with so many green. Red quarters and Green $1s for a limit set?



Rhodeman77

4 of a Kind
Supporting Member
Joined
Nov 11, 2014
Messages
7,462
Reaction score
17,255
Location
Cleveland
Update: after milling about 1200 chips with this milling table, I can confirm it does NOT move whatsoever.

You can lock in both axis once you've aligned the table for your chip size/mold. Then you're good to go.

For me having to mill multiple molds of different sizes, it was well worth the investment.

I'd share pics of the results, but we have renovations that started so I had to clean my poker room / workshop and put everything away.

I did get more chips in though. About 1100 HHR I need to mill.

Not even sure what to do with so many green. Red quarters and Green $1s for a limit set?

View attachment 496948

$2 chips are often green.


GenghisKhan

Full House
Supporting Member
Joined
Nov 7, 2014
Messages
2,569
Reaction score
3,266
Location
NB Canada - Maine's next door neighbour

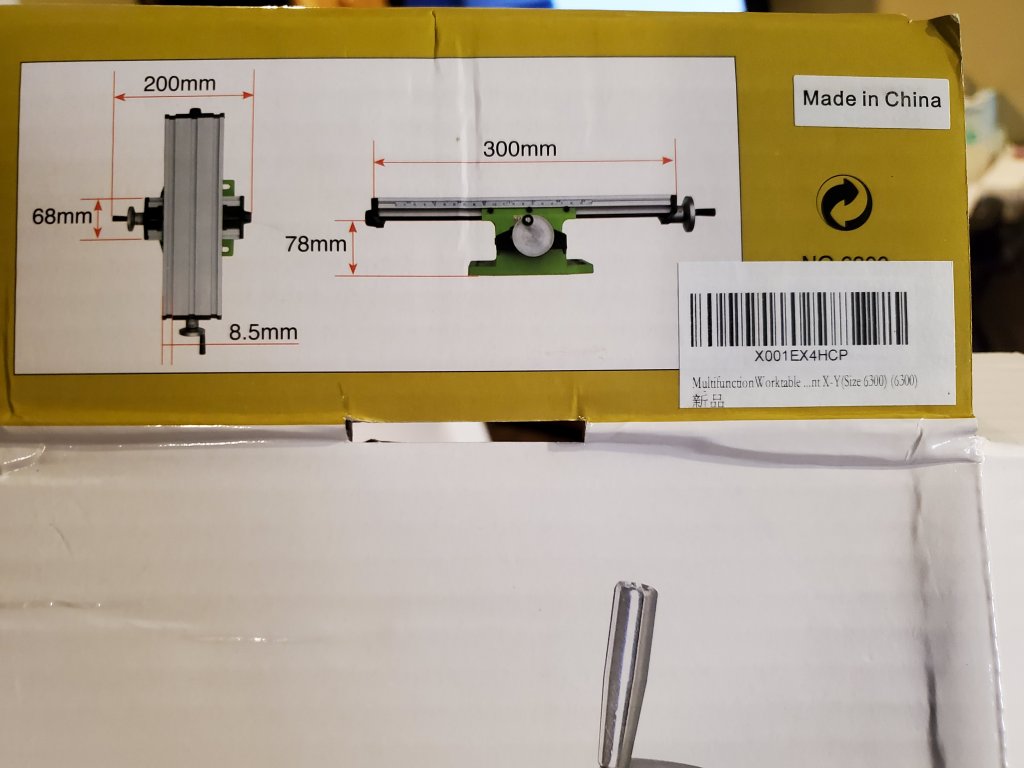

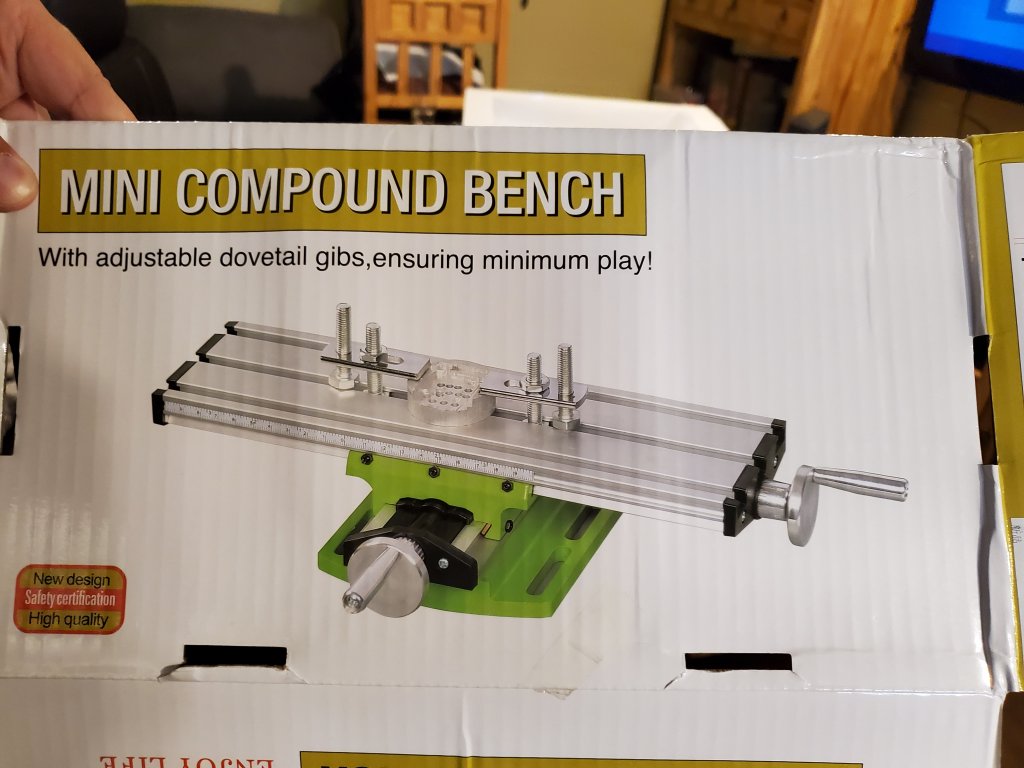

Attachments

  • 20200721_155329.jpg
    77 KB · Views: 82
  • 20200721_155315.jpg
    105.3 KB · Views: 56

Jambine

Full House
Joined
Jan 23, 2016
Messages
3,092
Reaction score
3,270
Location
Three Creek Ranch, CO

Jambine

Full House
Joined
Jan 23, 2016
Messages
3,092
Reaction score
3,270
Location
Three Creek Ranch, CO
OK, it works. It took a while to get the X-Y axis locked down in the correct position, but otherwise pretty good.
My drill press worked well with very little wobble. Dead center and consistent depth !!



Schmendr1ck

4 of a Kind
Supporting Member
Joined
Nov 5, 2014
Messages
6,033
Reaction score
13,762
Location
Orlando, FL
I've picked up this table as well as the Magnate bit and other necessary odds & ends. Now I just need to clear enough space in the garage to set up my drill press! :ROFL: :ROFLMAO:


Josh Kifer

Royal Flush
Site Vendor
Supporting Member
Joined
Jul 21, 2017
Messages
14,975
Reaction score
35,366
Location
Idaho
And oh yeah. Go slow on the drill speed and down pressure.
I did these at about 700 rpm. That's the slowest setting I can get on my old belt drive press.
Harder the chip, the more you need to heed this. Paulsons are pretty forgiving. Older ASMs, you will snap chips if you don't follow those rules. Slow and even pressure.


GenghisKhan

Full House
Supporting Member
Joined
Nov 7, 2014
Messages
2,569
Reaction score
3,266
Location
NB Canada - Maine's next door neighbour
Others have had better success with lowest speed but with mine it just wasn't working out.

On my King drill press, I had to move from lowest speed to 2nd lowest. On lowest it would spin a chip now and then. Even though it was jammed into the jig and I had a piece of wood to put extra pressure on the chip. This was on Nevada molds and ASM CSQ mostly.


Josh Kifer

Royal Flush
Site Vendor
Supporting Member
Joined
Jul 21, 2017
Messages
14,975
Reaction score
35,366
Location
Idaho
Others have had better success with lowest speed but with mine it just wasn't working out.

On my King drill press, I had to move from lowest speed to 2nd lowest. On lowest it would spin a chip now and then. Even though it was jammed into the jig and I had a piece of wood to put extra pressure on the chip. This was on Nevada molds and ASM CSQ mostly.
I added felt pads to the bottom so the chip has something to grip on.... It's helped alot


GenghisKhan

Full House
Supporting Member
Joined
Nov 7, 2014
Messages
2,569
Reaction score
3,266
Location
NB Canada - Maine's next door neighbour
I'm using those neoprene looking cooking sheets. It works great. And it was rare that a chip spun on lowest setting. But would still slip from time to time at. Figured it would happen a few times per rack and was not comfortable with that.

Edit: @Schmendr1ck just made me realize it's silicone lol, not neoprene.
As recommended by @Eloe2000 ;)

Last edited:

Bad Toad

Two Pair
Joined
Jul 26, 2016
Messages
349
Reaction score
394
Location
Albuquerque, New Mexico
I have been away from the chip scene for a few years, but always watching and seeing what is new. One thing I noticed was how pricey these things have gotten over the last few years. Wanting to get back into the scene again, I decided to mill and label some Paulsons as my first jump back into a fun hobby. Paulson make one sweet chip and I'd like to personalize this set.

Goofing around with some well used starbursts and a 7/8 flat bottom bit, I found by making a small back cut on the jig to hold the chip there is a bit more grip and less opportunity for spin.

One question I have is: How many chips can be milled before the bit begins to dull?


Josh Kifer

Royal Flush
Site Vendor
Supporting Member
Joined
Jul 21, 2017
Messages
14,975
Reaction score
35,366
Location
Idaho
I have been away from the chip scene for a few years, but always watching and seeing what is new. One thing I noticed was how pricey these things have gotten over the last few years. Wanting to get back into the scene again, I decided to mill and label some Paulsons as my first jump back into a fun hobby. Paulson make one sweet chip and I'd like to personalize this set.

Goofing around with some well used starbursts and a 7/8 flat bottom bit, I found by making a small back cut on the jig to hold the chip there is a bit more grip and less opportunity for spin.

One question I have is: How many chips can be milled before the bit begins to dull?
You will most likely never dull the thing....

... And boy, would I know.
